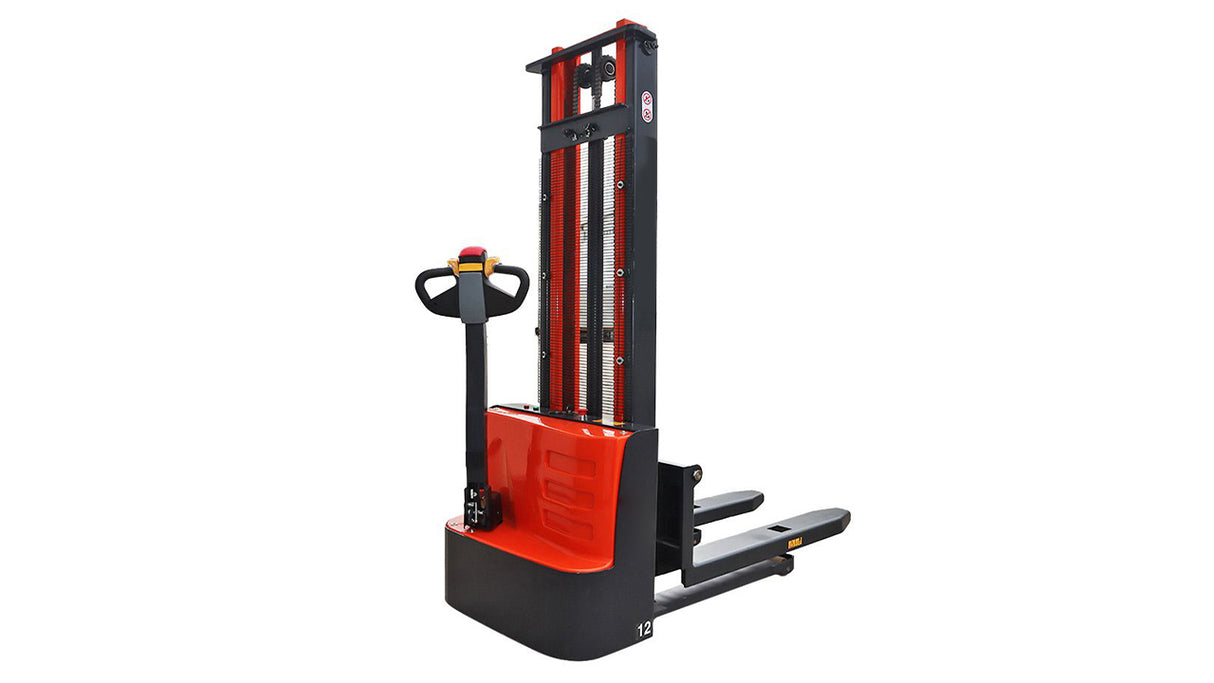

Walkie Electric Pallet Truck – 1500 kg

Power type: Electric

Steering type: Mechanical steering

Operation mode: Walkie

Load capacity: 1500 kg

Load center: 500 mm

Wheelbase: 1115 mm

Operating weight with battery: 600 kg

Wheel type: PU (polyurethane)

Drive wheel size: Φ210×75 mm

Support wheel size: Φ125×50 mm

Load wheel size: Φ80×70 mm

Mast height lowered: 2080 mm

Lift height: 3000 mm

Mast height extended: 3350 mm

Overall dimensions (L × W): 1727 × 800 mm

Fork height lowered: 85 mm

Handlebar height in driving position (max/min): 700 / 1300 mm

Fork dimensions (L/W/L): 170 / 60 / 1150 mm

Adjustable fork width: 380-560 mm / 380-680 mm

Ground clearance: 30 mm

Aisle width for 1000×1200 pallets: 2200 mm

Turning radius: 1296 mm

Travel speed (loaded/unloaded): 4 / 4.5 km/h

Lifting speed (loaded/unloaded): 0.095 / 0.165 m/s

Lowering speed (loaded/unloaded): 0.100 / 0.110 m/s

Gradeability (loaded/unloaded): 5% / 8%

Brake type: Electromagnetic

Traction motor power: 0.75 kW

Lifting motor power: 2.5 kW

Battery (voltage/capacity): 2×12 V / 2×80 Ah (Lead-acid)

Battery weight: 2×27 kg

Control type: DC

Noise level at the driving position: < 70 dB(A) (EN 12053)

Main features:

• Reliable mechanical steering for precise control
• Lift height of up to 3 meters for versatile handling
• Optimized travel and lifting speeds for increased productivity
• Electromagnetic brake for enhanced safety
• Long-lasting, easily replaceable battery
